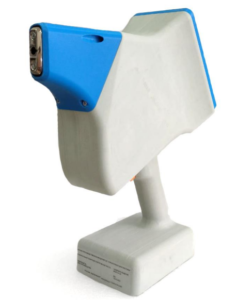

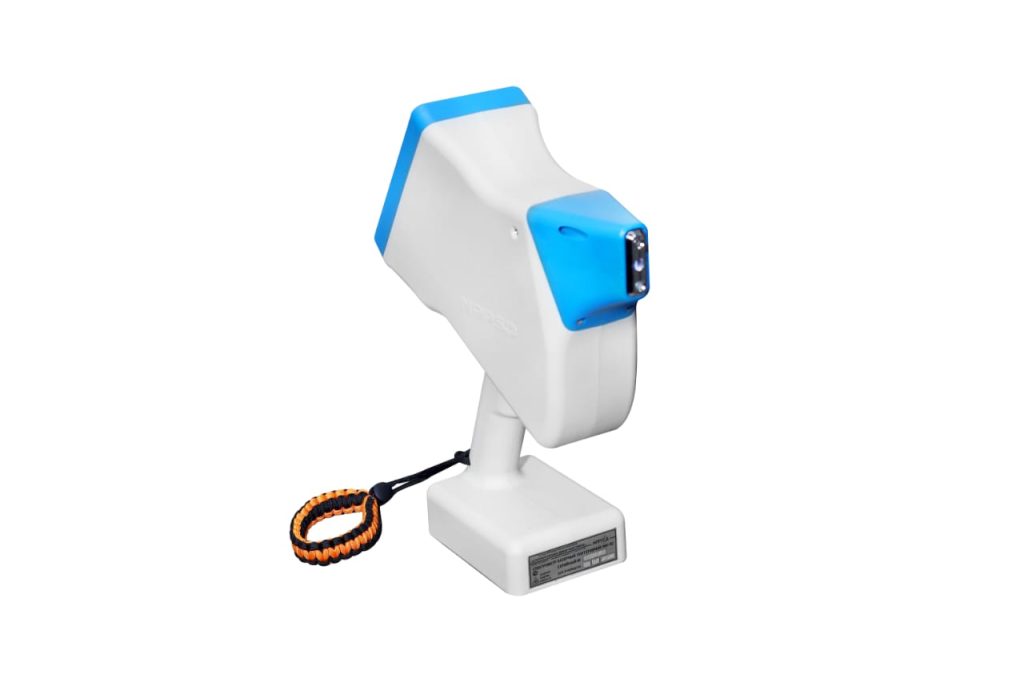

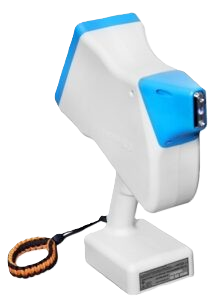

Portable Metal Spectrometer LIS-02
Portable Metal Spectrometer LIS-02
The Portable Metal Spectrometer LIS-02 is a high-performance, handheld solution for fast and accurate metal composition and alloy identification. Designed for on-site analysis, the LIS-02 enables instant verification of metal grades without damaging the sample, making it ideal for quality control, material verification, and sorting applications.
Equipped with advanced spectrometric technology, the LIS-02 delivers precise elemental analysis across a wide range of metals and alloys. Its rugged, lightweight design and intuitive interface make it suitable for use in workshops, factories, warehouses, and field environments.
Explore Product
Features of Portable Metal Spectrometer LIS-02
Discover fast, accurate and reliable metal analysis with the Portable Metal Spectrometer LIS-02, designed for demanding industrial and quality control applications.
Carbon Analysis: The spectrometer LIS-02 allows measurement of carbon concentration in steels without using argon, directly in the air.
Speed: High-speed analysis with results in 1 second.
Accuracy: Provides resolution of 0.01 nm over the entire measurement range.
Portability: Compact dimensions and weight comparable to a handheld power tool.
Reliable: Designed for long-term operation compared with X-ray fluorescence spectrometers (XRF).
Built-in Grade Library: Displays the identified steel or alloy grade based on analysis results.
CE Value: Supports measurement of carbon equivalent values.
Camera: A high-resolution camera captures the location of analysis.
TECHNICAL CHARACTERISTICS
| Source of radiation | Pulsed DPSS Laser 1064 nm |
| Measurement point size | 50 microns |
| Measurement duration | 1.0 sec |
| Laser emitter safety class | 3b |
| Working spectral range | 177–380 nm |
| Display | 5″ color touch screen display |
| Data Transfer | WIFI and Bluetooth |
| Language | English, German and Russian |
| Security | Password Protection |
| Duration of autonomous work | More than 200 dimensions |
| Power | Replaceable Li-ion battery |
| Operating conditions: ambient air temperature | From −15 to +40 °C |
